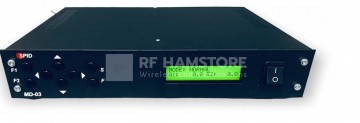

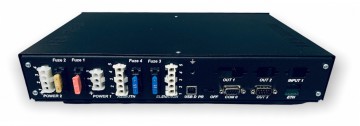

MD-03 Standard Rotor Controller
New model standard controller available @ RF HAMDESIGN.
This MD-03 will replace the Rot1Prog and Rot2Prog controllers in near future.
(Controllers Rot1Prog and Rot2Prog are still available, but will be sold out soon)
Existing users of Rot1 or Rot2Prog controllers can change to MD-03 if needed.
RF HAMDESIGN Already offers the new MD-03 and PS-03 (Power supply) for use with all standard pulse count SPID and SPX antenna rotators.
- MD-03 rotor controller is supplied incl:
- Connector set
- Built in Track interface for Azimuth and Elevation and X/Y rotators
- Flash firmware (Easy to do by user)
- Access to our /HR support page (how to flash the MD-03)
- Setup Doc (PDF) to start with MD-03 controller
Option available: Ethernet Module, Mouse, Current Measurement Module CMM and Power supply PS-03.
Specifications:
Weight MD-03: 3Kg
Dimensions MD-03: 34x26x6,5 cm (WxLxH)
Operations voltage 12...18Vols DC / 15Amp (Suitable Power supply: PS-03)
MD-03 controller fits to: SPID RAS, BIG-RAS, RAK, BIG-RAK, RAU and RAEL rotators, as well all SPX standard pulse count rotators.
MD-03 can not be used with SPID/HR and SPX/HR (High Resolution Rotators ! (Only on request)
